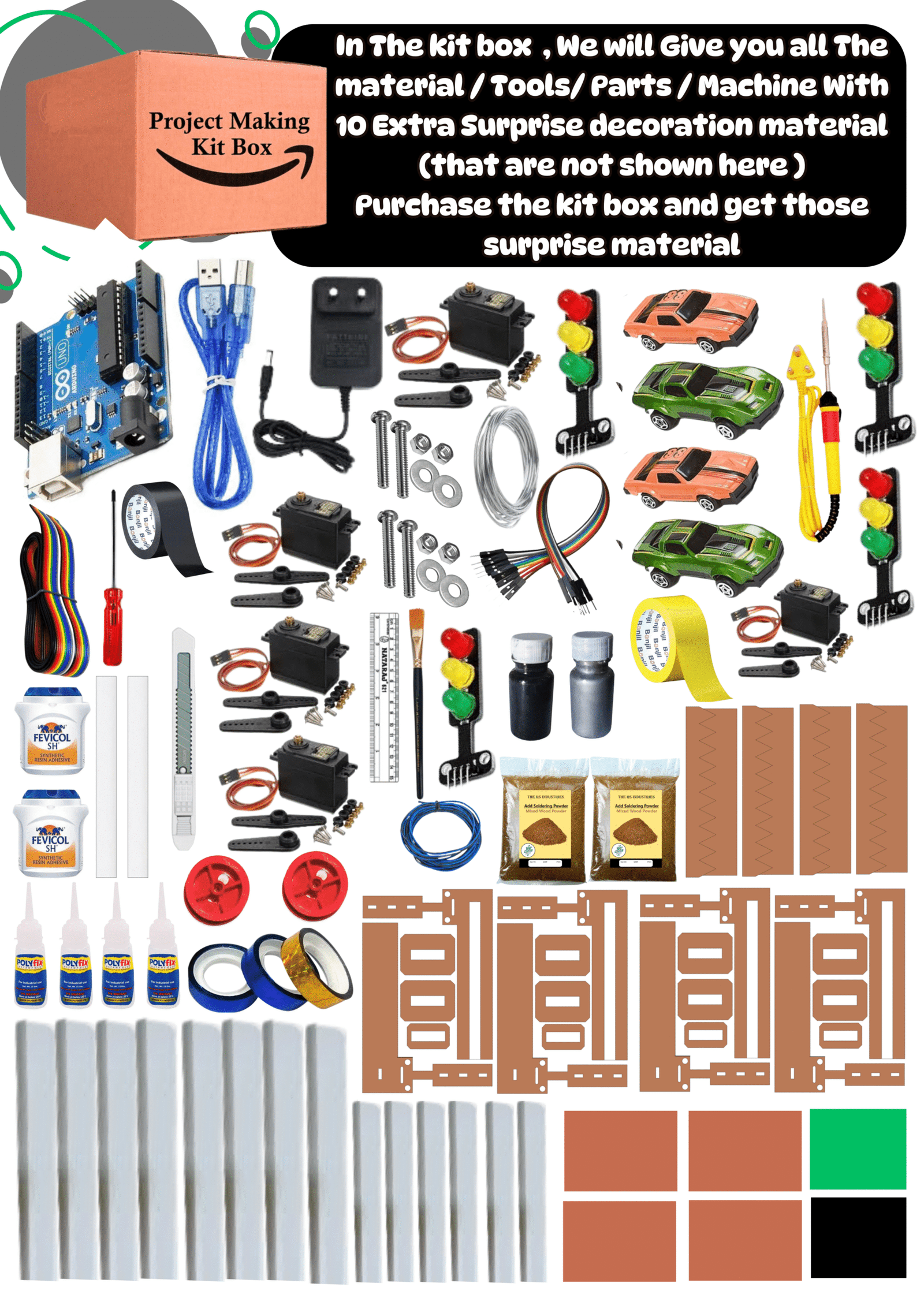

Arduino Traffic Signal Project – For Transport & Communication/Transport & Communication Project Idea

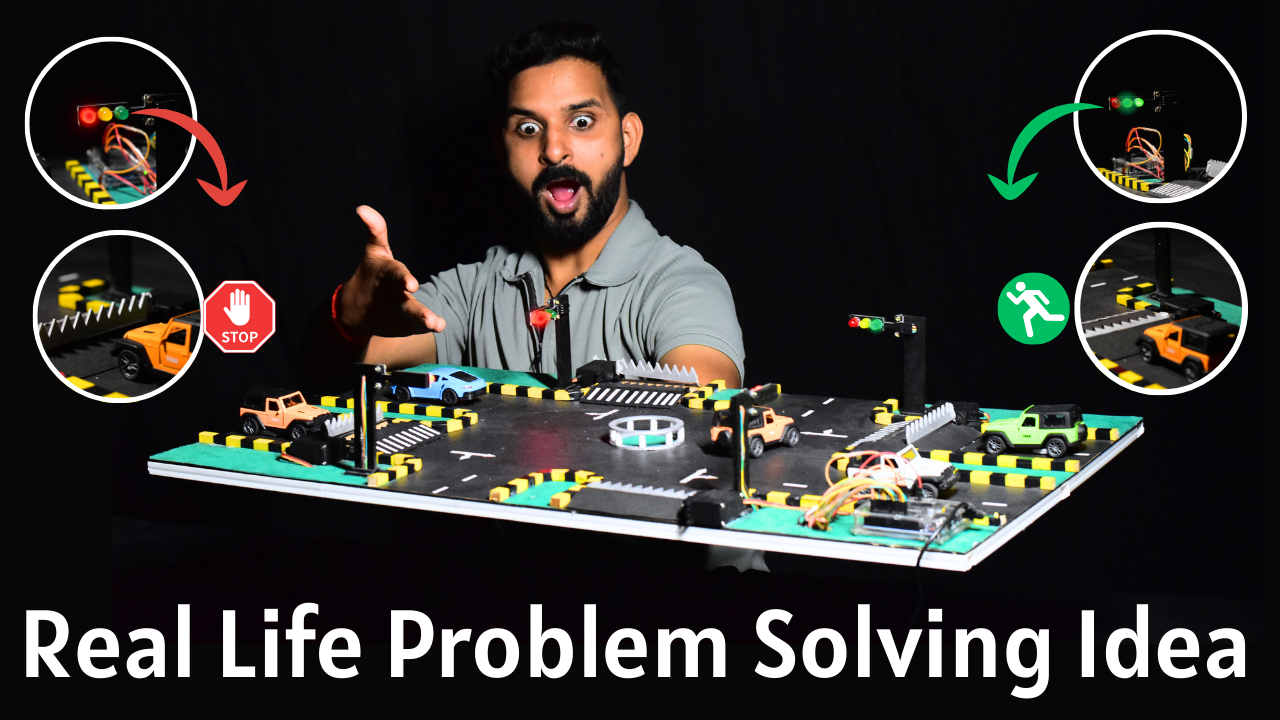

In this project, you will see a 4-way traffic light control system with an advanced safety feature – traffic spikes/barriers. When the signal is red, the spikes stay up to stop vehicles from breaking rules. If anyone tries to cross, their vehicle can get a flat tyre. 🚗❌ When the light turns green, the spikes go down, and vehicles can move safely.
Terms & Conditions: Our project kits are designed for educational and demonstration purposes only. The projects created using these kits represent prototype ideas and concepts. They are not ready-to-use real-life products. To use any project in real-world applications, further research, development, and testing may be required. By purchasing this kit, the buyer agrees that the project is intended only for learning and experimental use.
Original price was: ₹4,999.00.₹3,999.00Current price is: ₹3,999.00.
Traffic violations, especially jumping red lights, are a major cause of accidents and congestion in modern cities. To address this, our project “Smart Traffic Light System with Red Signal Spike Barrier” integrates traffic signals with a physical barrier system. The model uses Arduino Uno to control traffic lights and servo-operated spike barriers. When the signal turns red, the spike barrier automatically rises to stop vehicles, and when it turns green, the barrier lowers to allow smooth movement. This innovative system ensures better traffic discipline, reduces accidents, and promotes road safety.
Terms & Conditions: Our project kits are designed for educational and demonstration purposes only. The projects created using these kits represent prototype ideas and concepts. They are not ready-to-use real-life products. To use any project in real-world applications, further research, development, and testing may be required. By purchasing this kit, the buyer agrees that the project is intended only for learning and experimental use.
