Underground Cable Fault Detection Project Robotic Underground Fault Detection System

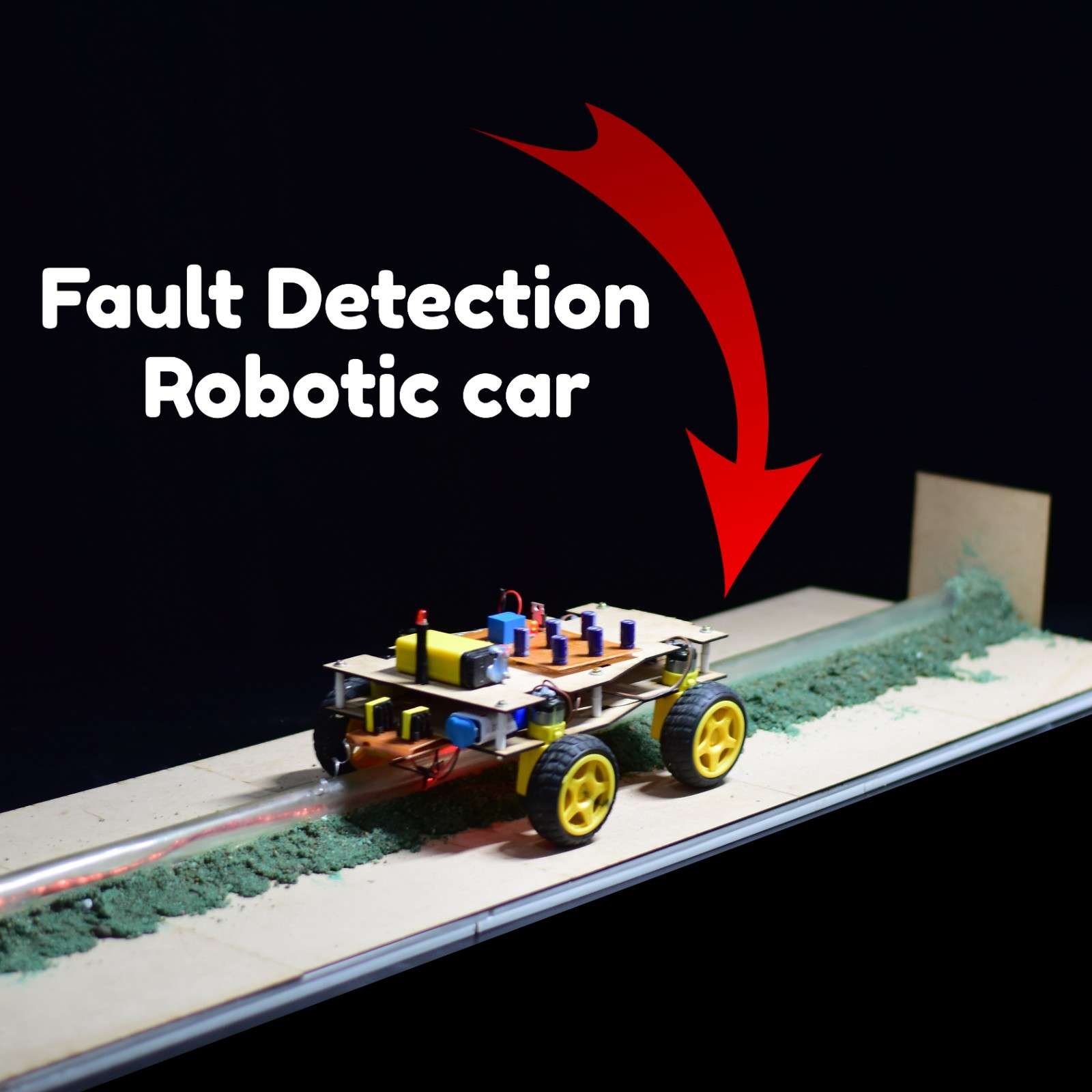

The Underground Fault Detecting Robotic Car is a smart robotic system that finds the exact location of a broken underground electric wire without digging the road.
The robot uses electromagnetic sensing and optical detection to identify the wire fault while moving, and it stops exactly at the point where the wire is broken.
Terms & Conditions: Our project kits are designed for educational and demonstration purposes only. The projects created using these kits represent prototype ideas and concepts. They are not ready-to-use real-life products. To use any project in real-world applications, further research, development, and testing may be required. By purchasing this kit, the buyer agrees that the project is intended only for learning and experimental use.
Original price was: ₹4,999.00.₹3,500.00Current price is: ₹3,500.00.
The Underground Fault Detecting Robotic Car is an advanced smart automation and robotics-based project designed to accurately detect the exact location of faults in underground electric cables without digging roads. This innovative system provides a real-world solution for power distribution companies, reducing repair time, labor cost, and road damage.
In traditional methods, identifying underground cable faults requires extensive excavation, which is time-consuming, expensive, and causes traffic disruption. This robotic system eliminates those problems by using electromagnetic sensing and optical detection technologies to continuously monitor the condition of underground wires while moving.
The robot travels along the cable path and detects changes in electromagnetic signals and light continuity. When a break or fault is detected, the robot automatically stops at the exact fault point, providing accurate location information. This enables technicians to perform targeted repairs instead of digging the entire road.
🤖 Working Principle
-
The system transmits a controlled signal through the underground cable
-
Sensors continuously monitor electromagnetic field variations
-
Optical or IR detection verifies cable continuity
-
On detecting a fault, the robotic car stops instantly
-
Fault location can be displayed on LCD or sent wirelessly
🏙️ Real-World Applications
-
Underground power cable maintenance
-
Smart city electrical infrastructure
-
Industrial wiring fault detection
-
Roadway and urban cable networks
-
Disaster recovery electrical systems
🎓 Educational Value
This project is ideal for engineering, diploma, and polytechnic students as it covers practical learning in:
-
Robotics and automation
-
Embedded systems
-
Sensor technology
-
Electrical fault analysis
-
Smart maintenance systems
Students gain hands-on experience in robot navigation, sensor integration, and real-time fault detection, making this project highly suitable for final year projects, science exhibitions, and technical demonstrations.
🌱 Innovation & Sustainability
By minimizing unnecessary digging and repairs, the system supports smart infrastructure, sustainable urban development, and eco-friendly maintenance practices. It represents the future of intelligent electrical fault management systems.
The Underground Fault Detecting Robotic Car is a high-demand, industry-relevant project that perfectly blends electronics, robotics, and power engineering, making it one of the best-selling student project models.
Terms & Conditions: Our project kits are designed for educational and demonstration purposes only. The projects created using these kits represent prototype ideas and concepts. They are not ready-to-use real-life products. To use any project in real-world applications, further research, development, and testing may be required. By purchasing this kit, the buyer agrees that the project is intended only for learning and experimental use.
