Solar Wireless Electric vehical/Inspire Award Project/Solar car/science project kit/Diy Project/Final year electrical project
1. Introduction: In today’s world, the growing concern for environmental sustainability has led to the development of renewable energy solutions. Electric vehicles (EVs) have gained popularity as an eco-friendly alternative to traditional gasoline-powered cars. However, one of the challenges faced by EV owners is the limited range due to battery constraints. To address this issue, we have developed a groundbreaking project – a solar-powered wireless charging system that can provide emergency charging to electric vehicles using a remote-controlled (RC) robotic car.
Original price was: ₹3,999.00.₹3,300.00Current price is: ₹3,300.00.

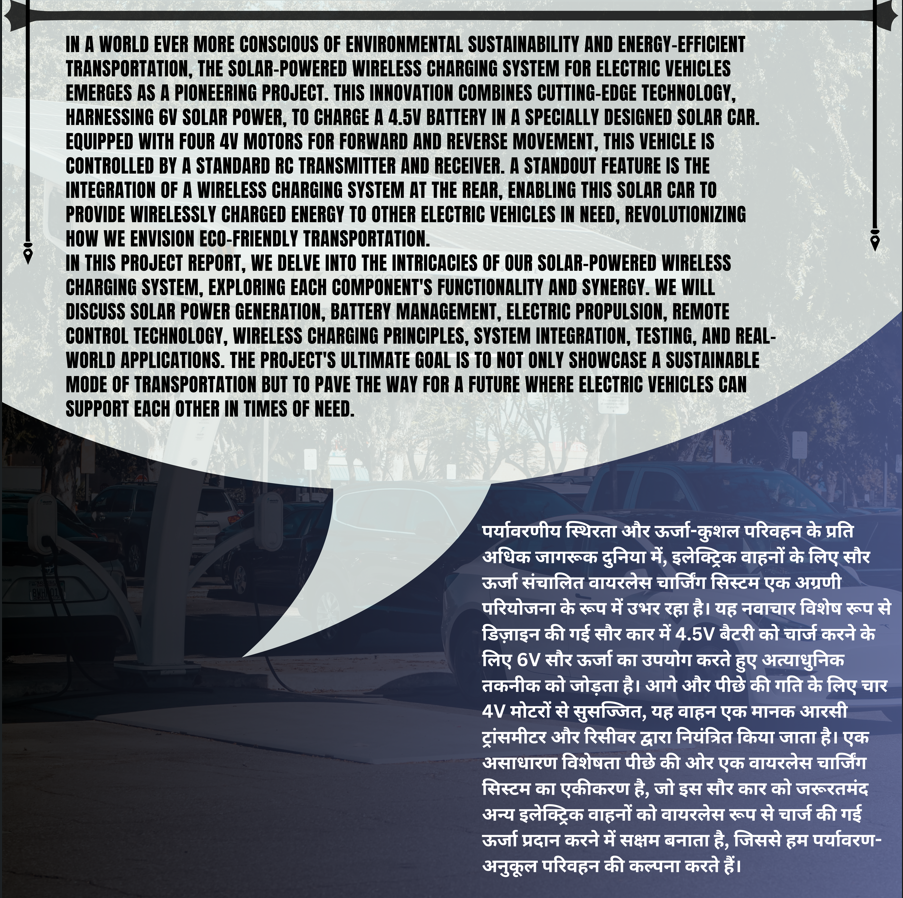

In a world ever more conscious of environmental sustainability and energy-efficient transportation, the Solar-Powered Wireless Charging System for Electric Vehicles emerges as a pioneering project. This innovation combines cutting-edge technology, harnessing 6V solar power, to charge a 4.5V battery in a specially designed solar car. Equipped with four 4V motors for forward and reverse movement, this vehicle is controlled by a standard RC transmitter and receiver. A standout feature is the integration of a wireless charging system at the rear, enabling this solar car to provide wirelessly charged energy to other electric vehicles in need, revolutionizing how we envision eco-friendly transportation.
In this project report, we delve into the intricacies of our Solar-Powered Wireless Charging System, exploring each component’s functionality and synergy. We will discuss solar power generation, battery management, electric propulsion, remote control technology, wireless charging principles, system integration, testing, and real-world applications. The project’s ultimate goal is to not only showcase a sustainable mode of transportation but to pave the way for a future where electric vehicles can support each other in times of need.
